Description
| The Technical Parameter of TLS3CX Backhoe Loader
|
|
| Overall Operating Weight | 7800KG |
| Transport Dimension | |
| L*W*H | 7600×2260×2890mm |
| Wheel base | 2250mm |
| Min. Ground Clearance | 300mm |
| Bucket Capacity | 1.3m3（2200mm width） |
| Breakout Force | 38KN |
| Loading Lifting Capacity | 2500KG |
| Bucket Dumping Height | 2800mm |
| Bucket Dumping Distance | 1062mm |
| Backhoe Capacity | 0.3m3（620mm width） |
| Max. Digging Depth | 4000mm |
| Optional Digging Depth | 5000mm-5500mm（Digging boom telescopic） |
| Swing Angle of backhoe | 190o |
| Max. Pulling Force | 39KN |
| Engine | |
| Brand/Model | YUCHAI YCD4J22T-115 Turbo engine |
| Type | In Line，Direct injection，Four-Stroke，Water Cooling |
| Rated Power | 85KW |
| Optional Engine | Euro 5 YCF36110 – S500 Yuchai 81KW
National II 4BT3.9 – C100 Cummins 75KW National II 4BT3.9 – C125 Cummins 92KW EPA4/Euro 5 F36 Fiat (FPT) 75KW EPA4 Cummins QSF3.8 |
| Steering System | |
| Steering Angle | ±36 o |
| Min. turning radius | 6581mm |
| Pressure of the system | 12Mpa |
| Axle | |
| Brand | FEICHENG YUNYU |
| Main Transmission Type | Double Reduction |
| Final Reducer | Single Stage Final Reducer |
| Rated Loader of Axle | 4/18.5t |
| Transmission System | |
| Torque Converter | |
| Model | 280 |
| Type | Single-stage Three Elements |
| Cooling Method | Oil-cooling Pressure Circulation |
| Gearbox | |
| Type | Fixed Shaft Power Transmission |
| Gears | Four Gears Ahead, Four Gears Astern |
| Max.Speed | 36KM/H |
| Tyre | |
| Model | （F）14-17.5 （R）19.5L-24 |
| Pressure of Front wheel | 0.22 Mpa |
| Pressure of Back Wheel | 0.22 Mpa |
| Brake System | |
| Service Brake | Air Over Oil Caliper Brake |
| External Type | |
| Self-regulation | |
| Self-balance | |
| Emergency Brake | Operation Power Implementing brake |
| Manual Operation Power Terminating Brake | |
| Hydraulic System | |
| Pressure of Hydraulic System | 22Mpa |
| Digging Power of Excavator Grab | 46.5KN |
| Digging Power of Dipper | 31KN |

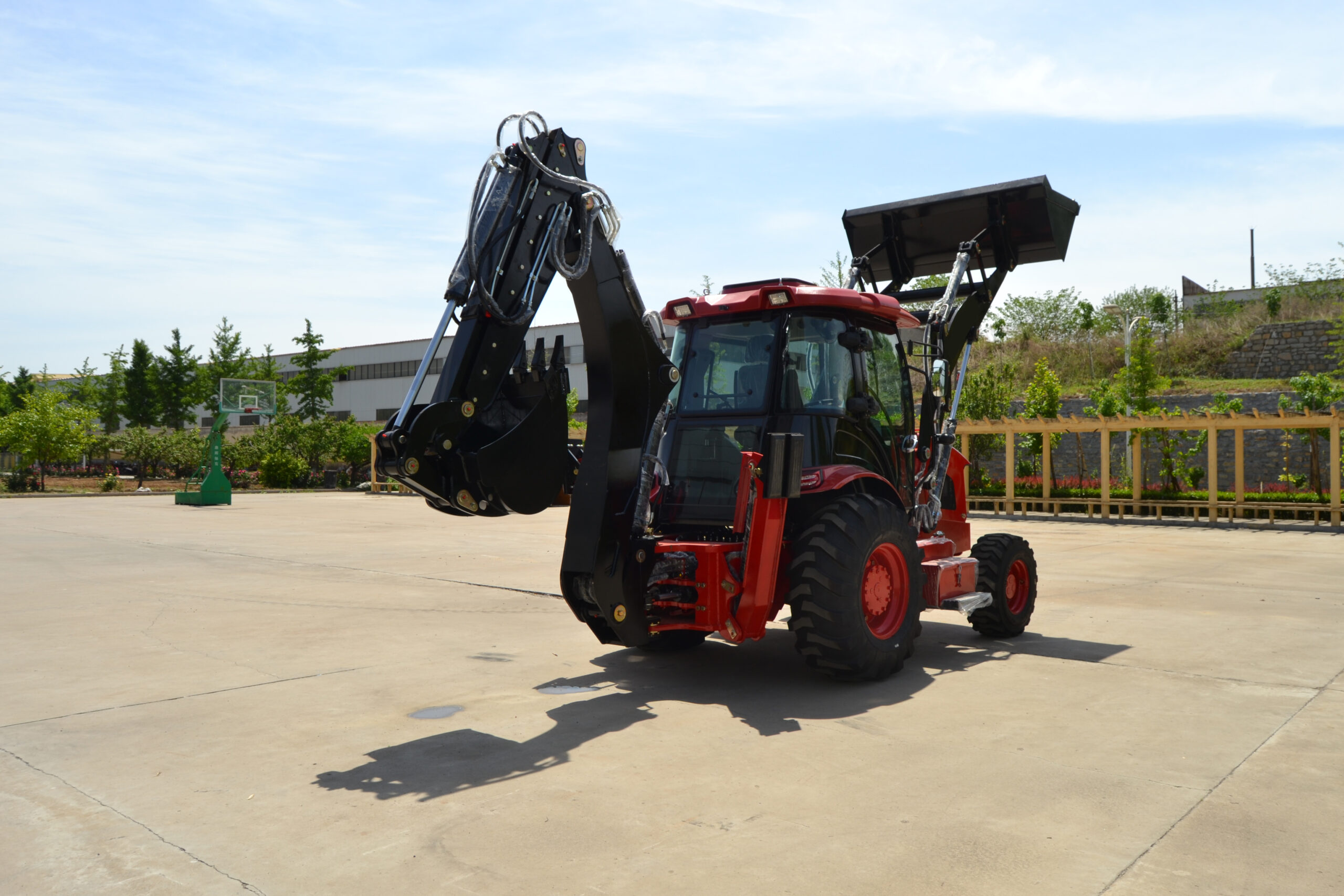

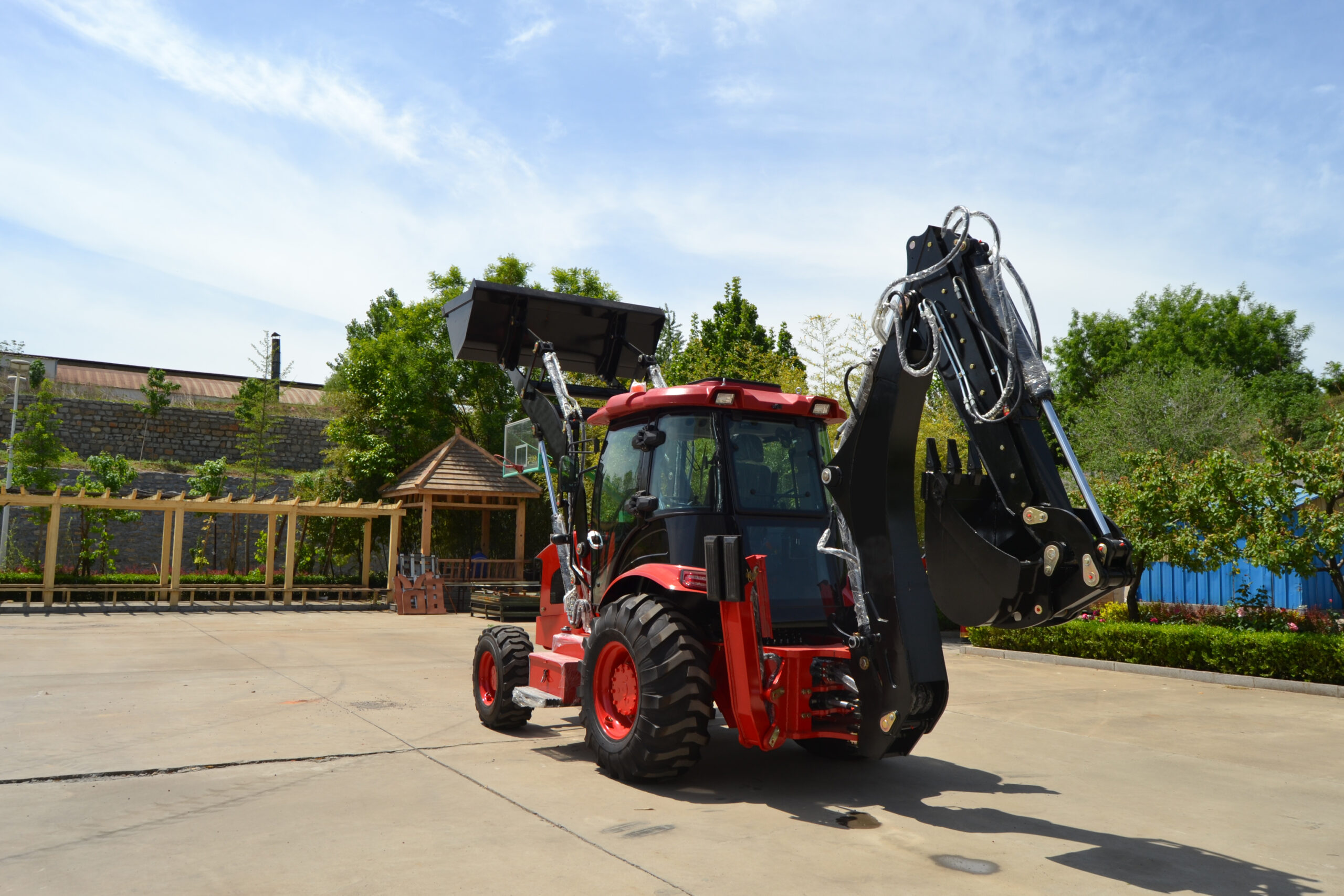

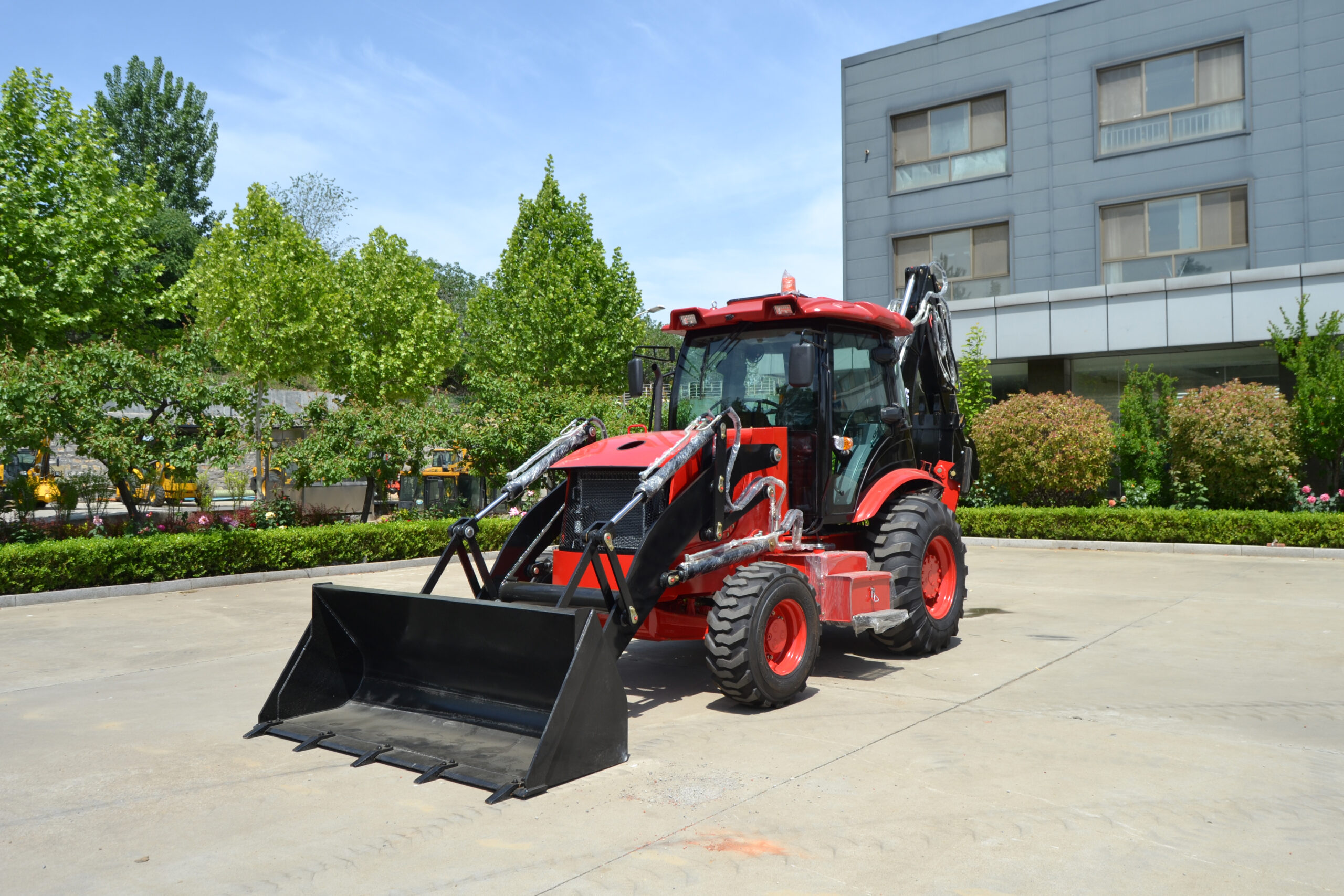

| The front end is equipped with a shovel bucket, and the rear end comes with an excavator bucket. The deluxe tractor – style front interior cabin is equipped with a fan, LED lights, front and rear dual – cameras with large – screen rear – view function, a window – breaking hammer, a fire extinguisher, sliding windows, a sunroof, and overhead heating. There is a deluxe adjustable swivel seat, and a deluxe liquid – crystal display instrument that can be adjusted front – to – back. The front shovel and rear excavator are operated by hydraulic pilot control. It is powered by a Yuchai 85KW engine, and equipped with a special dual – high – and – low – speed gearbox. The front tires are 14 – 17.5 vacuum tires, and the rear tires are 19.5L – 24 vacuum tires. The front – wheel steering drive axle enables four – wheel drive, and it also has A – shaped outriggers. | |
| The parameters or configuration are subject to change without notice. | |
